Ion Exchange Chromatography Media
Knowledge & Benefit Tech’s ion exchange chromatography media were prepared by monodisperse, highly crosslinked polyacrylate microspheres. Compared to the traditional agarose based ion exchange chromatography media, Knowledge & Benefit Tech’s ion exchange chromatography media have higher mechanical stability and low back pressure. The porous hydrophilic ion exchange media are produced by first forming a hydrophilic layer on the microspheres. Then, ion exchange functional groups are attached onto the hydrophilic layer. Knowledge & Benefit Tech’s ion exchange chromatography media are ideal for laboratory and process scale purification of proteins, peptides, nucleic acids, antibiotics, and low molecular weight pharmaceuticals.
Characterization
·High chemical and pH stability
·Spherical particles with uniform particle size distribution
·Optimized pore structure
·High surface area and high loading capacity
·High mechanical stability
Fig. 5. Application of KBsphere® DEAE meida
Fig. 5. Application of KBsphere® SP and competitor’s resins
Table 3: List of ion exchange chromatography media
Knowledge & Benefit Tech’s ion exchange chromatography media were prepared by monodisperse, highly crosslinked polyacrylate microspheres. Compared to the traditional agarose based ion exchange chromatography media, Knowledge & Benefit Tech’s ion exchange chromatography media have higher mechanical stability and low back pressure. The porous hydrophilic ion exchange media are produced by first forming a hydrophilic layer on the microspheres. Then, ion exchange functional groups are attached onto the hydrophilic layer. Knowledge & Benefit Tech’s ion exchange chromatography media are ideal for laboratory and process scale purification of proteins, peptides, nucleic acids, antibiotics, and low molecular weight pharmaceuticals.
Characterization
·High chemical and pH stability
·Spherical particles with uniform particle size distribution
·Optimized pore structure
·High surface area and high loading capacity
·High mechanical stability

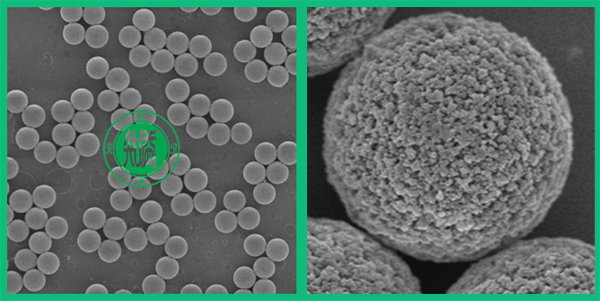

Fig. 4. SEM of ion exchange chromatography media

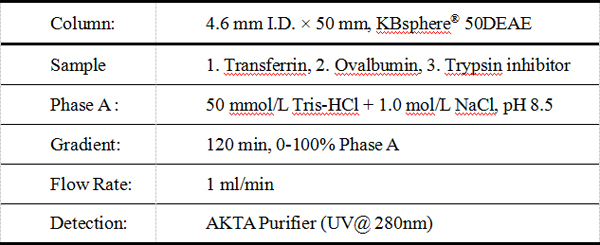

Fig. 5. Application of KBsphere® DEAE meida
Fig. 5. Application of KBsphere® SP and competitor’s resins

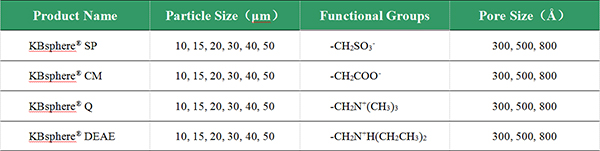

Table 3: List of ion exchange chromatography media
