Details
The new generation of KBsphere® Spacers developed by KBsphere Tech. has stronger hardness, which greatly expands the range of choices for customers, who can select products with different hardness and particle sizes according to their needs. KBsphere Tech. provides two series of Spacer products: KBsphere® Polymer-Spacer series and KBsphere® Silica-Spacer series.
Characterization
highly uniform particle size£¨CV<3%£©
Smooth surface, high purity
Good heat resistance
High mechanical strength
Good dispersion, no agglomeration
Highly uniform particle size

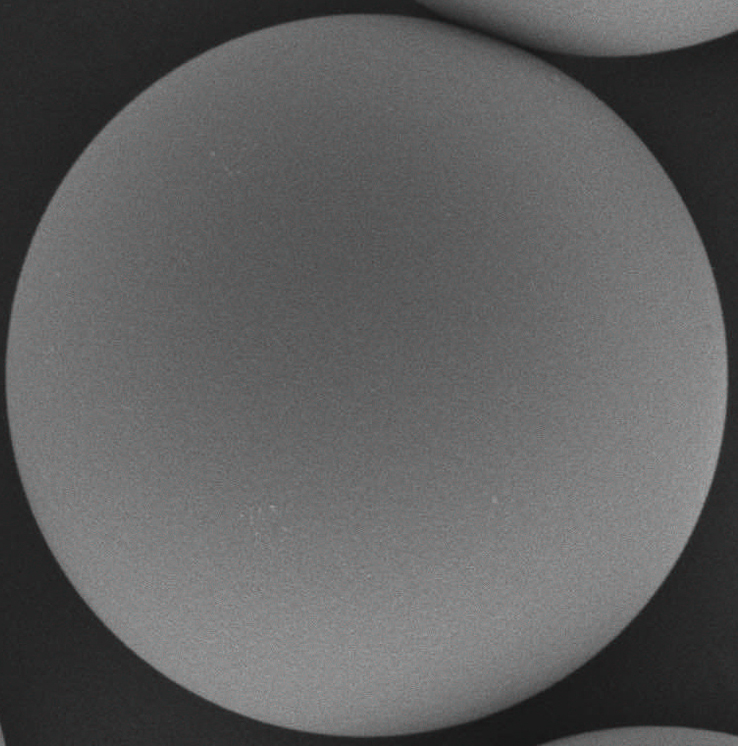

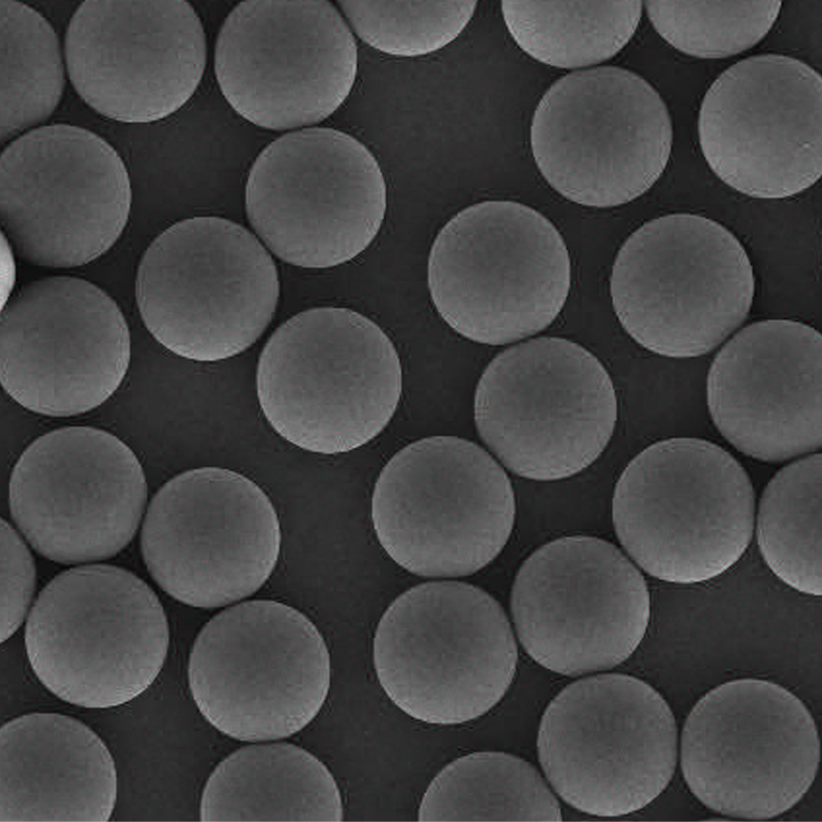

Fig. 1: SEM of Spacer
Low ion content
|
Detection substance |
Result |
Method |
|
Cl |
≤ 1 ppm |
ion chromatography |
|
Na |
≤ 1 ppm |
ICP spectrograph |
|
Fe |
≤ 1 ppm |
|
|
K |
≤ 1 ppm |
|
|
Ca |
≤ 1 ppm |
Technical Parameters£º
|
Test items |
KBsphere® Spacer-SP |
KBsphere® Spacer-EX |
|
refractive index |
1.59 |
1.59 |
|
CV % |
< 3% |
< 3% |
|
pyrolysis temperatur£¨oC£© |
400 |
400 |
|
specific gravity£¨g/cm3£© |
1.08 |
1.08 |
Products
|
Products |
Particle size£¨μm£© |
|
KBsphere® Spacer-SP |
2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 50 |
|
KBsphere® Spacer-EX |
2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 50 |
